Шановні колеги, допоможіть настроїти опцію 82 для гпон плати на 220 та 320 зтє. поділіця конфігом.

Доброго дня, ви найшли схему распиновки?

Хтось вирішив дану проблему?

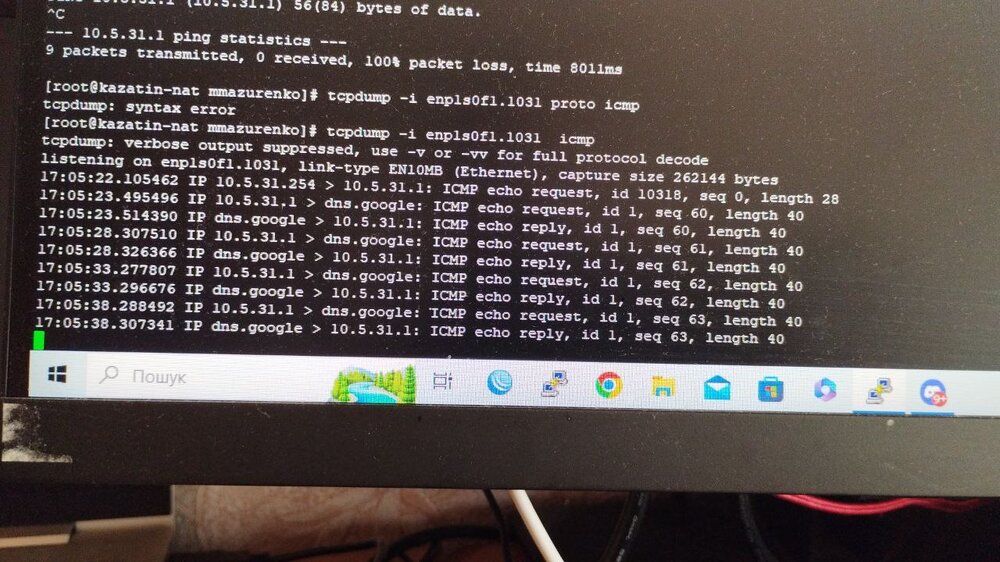

ZTE C 220 , option82 шайтан олт( не дає інтернету після ону, тісіпі дамп показує що є обмін нетом пінги вертаються але по факту нема ніц на клієнту. конфіг даю, Допомжіть реалізувати ту є**Ну опцію82 ip адресу клієнт отримує. ZXAN(config)#sho ip dhcp snooping port epon-onu_0/5/4:1 Status : enable Current online users are 1. Index MAC addr IP addr Vlan State Expiration 1 E865.D43C.EC7A 10.5.31.193 1031 dynamic 19:30:13 06/08/2024 ZXAN(config)#sho ip dhcp snooping port epon-onu_0/5/4:1 Status : enable Current online users are 1. Index MAC addr IP addr Vlan State Expiration 1 E865.D43C.EC7A 10.5.31.193 1031 dynamic 19:30:13 06/08/2024 ZXAN(config)#sho ip dhcp snooping port epon-onu_0/5/4:1 Status : enable Current online users are 1. Index MAC addr IP addr Vlan State Expiration 1 E865.D43C.EC7A 10.5.31.193 1031 dynamic 19:30:13 06/08/2024 ZXAN(config)#sho ip dhcp snooping port epon-onu_0/5/4:1 Status : enable Current online users are 1. Index MAC addr IP addr Vlan State Expiration 1 E865.D43C.EC7A 10.5.31.193 1031 dynamic 19:30:13 06/08/2024 ZXAN(config)# ZXAN(config)#show run Building configuration... !**********Before interface -- show run on RP start!********* ! ! sdisk disable set-pnp disable add-rack rackno 0 racktype ZXPON add-shelf rackno 0 shelfno 0 shelftype ZXA10C220-B add-card rackno 0 shelfno 0 slotno 1 EIG add-card rackno 0 shelfno 0 slotno 3 EPFCB add-card rackno 0 shelfno 0 slotno 4 EPFCB add-card rackno 0 shelfno 0 slotno 5 EPFC add-card rackno 0 shelfno 0 slotno 6 EPFCB system-monitor watchdog-duration rackno 0 shelfno 0 slotno 1 value 5 system-monitor endless-loop duration rackno 0 shelfno 0 slotno 1 value 75 system-monitor endless-loop reboot rackno 0 shelfno 0 slotno 1 disable system-monitor task-suspend-reboot rackno 0 shelfno 0 slotno 1 all system-monitor watchdog-duration rackno 0 shelfno 0 slotno 3 value 5 system-monitor endless-loop duration rackno 0 shelfno 0 slotno 3 value 75 system-monitor endless-loop reboot rackno 0 shelfno 0 slotno 3 disable system-monitor task-suspend-reboot rackno 0 shelfno 0 slotno 3 all system-monitor watchdog-duration rackno 0 shelfno 0 slotno 4 value 5 system-monitor endless-loop duration rackno 0 shelfno 0 slotno 4 value 75 system-monitor endless-loop reboot rackno 0 shelfno 0 slotno 4 disable system-monitor task-suspend-reboot rackno 0 shelfno 0 slotno 4 all system-monitor watchdog-duration rackno 0 shelfno 0 slotno 5 value 5 system-monitor endless-loop duration rackno 0 shelfno 0 slotno 5 value 75 system-monitor endless-loop reboot rackno 0 shelfno 0 slotno 5 disable system-monitor task-suspend-reboot rackno 0 shelfno 0 slotno 5 all system-monitor watchdog-duration rackno 0 shelfno 0 slotno 6 value 5 system-monitor endless-loop duration rackno 0 shelfno 0 slotno 6 value 75 system-monitor endless-loop reboot rackno 0 shelfno 0 slotno 6 disable system-monitor task-suspend-reboot rackno 0 shelfno 0 slotno 6 all system-monitor watchdog rackno 0 shelfno 0 slotno 7 enable system-monitor watchdog-duration rackno 0 shelfno 0 slotno 7 value 5 system-monitor endless-loop duration rackno 0 shelfno 0 slotno 7 value 75 system-monitor endless-loop reboot rackno 0 shelfno 0 slotno 7 disable system-monitor task-suspend-reboot rackno 0 shelfno 0 slotno 7 all system-monitor watchdog rackno 0 shelfno 0 slotno 8 enable system-monitor watchdog-duration rackno 0 shelfno 0 slotno 8 value 5 system-monitor endless-loop duration rackno 0 shelfno 0 slotno 8 value 75 system-monitor endless-loop reboot rackno 0 shelfno 0 slotno 8 disable system-monitor task-suspend-reboot rackno 0 shelfno 0 slotno 8 all ! his-performance sample enable his-performance alarm enable his-performance auto-upload disable ! ip dhcp snooping enable ! ip dhcp relay update arp ! ! clock ! ! ! clock ! ! ! clock utc-offset 0 ptp-adjust 0 7/1 ! ! security port-protect enable ! eth-switch max-frame-length 1600 ! ! vlan-reserve 4001-4090 vlan database vlan 1,21,1029,1031-1032 vlan 1349,3999-4000 ! vlan 1031 ip dhcp snooping ! ! epon onu-sla-profile profile-name create 1G onu-sla-profile profile-set 1G upstream fixed 0 fixedpkt 1500 assured 10000 ma ximum 1000000 maxburst 1000000 priority 0 ! ! port-location access-node-identifier inband-mac ! dhcp-option82 enable dhcp6-option18 disable ! pppoe-plus disable ! igmp enable mld disable gpon ! ! gpon ! ! pon onu-type 1GE epon description 1_ge_port onu-type-if 1GE eth_0/1 uncfg-onu-display-info mac sn model version ! ! ! ! ip-service ip-source-guard disable ! ! ! interface mng1 ip address 136.1.1.100 255.255.0.0 boot-server 193.169.80.56 boot-username zteftp config-filename startrun.dat imgfile-location local ! interface vlan 4000 ip address 10.205.31.1 255.255.255.0 ! interface null1 ! interface smartgroup1 description "LACP UPLINK" port-protect disable uplink-isolate disable switchport mode trunk switchport vlan 4000 tag ! interface gei_0/1/1 hybrid-attribute fiber negotiation auto flowcontrol disable port-protect disable uplink-isolate disable switchport mode trunk switchport vlan 1031,4000 tag ip dhcp snooping trust ! interface gei_0/1/2 hybrid-attribute fiber negotiation auto flowcontrol disable port-protect disable uplink-isolate disable switchport mode hybrid switchport vlan 4000 tag ! interface gei_0/1/3 hybrid-attribute fiber negotiation auto flowcontrol disable port-protect disable uplink-isolate disable switchport mode hybrid switchport vlan 4000 tag ! interface gei_0/1/4 hybrid-attribute fiber negotiation auto flowcontrol disable port-protect disable uplink-isolate disable switchport mode hybrid switchport vlan 4000 tag ! interface epon-olt_0/3/1 p2p mode group ! interface epon-olt_0/3/2 p2p mode group ! interface epon-olt_0/3/3 p2p mode group onu 1 type 1GE mac 8007.1b7c.9230 ip-cfg static ! interface epon-onu_0/3/3:1 admin enable property description "DESCRIPTION" ems-autocfg-request disable sla-profile 1G vport 1 encrypt direction downstream disable vport 1 switchport mode access vport 1 switchport default vlan 1029 vport 1 port-location sub-option remote-id enable vport 1 port-location sub-option remote-id name REMOTE-ID vport 1 dhcp-option82 enable vport 1 dhcp-option82 trust true replace vport 1 ip dhcp snooping enable vport 1 ! interface epon-olt_0/3/4 p2p mode group ! interface epon-olt_0/4/1 p2p mode group ! interface epon-olt_0/4/2 p2p mode group ! interface epon-olt_0/4/3 p2p mode group ! interface epon-olt_0/4/4 p2p mode group ! interface epon-olt_0/5/1 p2p mode group onu 1 type 1GE mac 2057.af82.8a08 ip-cfg static onu 2 type 1GE mac 6c68.a442.fb76 ip-cfg static ! interface epon-onu_0/5/1:1 admin enable property description "DESCRIPTION" ems-autocfg-request disable sla-profile 1G vport 1 encrypt direction downstream disable vport 1 switchport mode hybrid vport 1 switchport default vlan 1031 vport 1 port-location format dsl-forum vport 1 port-location sub-option remote-id enable vport 1 port-location sub-option remote-id name REMOTE-ID vport 1 dhcp-option82 enable vport 1 dhcp-option82 trust true replace vport 1 ip dhcp snooping enable vport 1 ip dhcp snooping quota 1 vport 1 ! interface epon-onu_0/5/1:2 admin enable property description "DESCRIPTION" ems-autocfg-request disable sla-profile 1G vport 1 encrypt direction downstream disable vport 1 switchport mode hybrid vport 1 switchport default vlan 1031 vport 1 port-location format dsl-forum vport 1 port-location sub-option remote-id enable vport 1 port-location sub-option remote-id name REMOTE-ID vport 1 dhcp-option82 enable vport 1 dhcp-option82 trust true replace vport 1 ip dhcp snooping enable vport 1 ip dhcp snooping quota 1 vport 1 ! interface epon-olt_0/5/2 p2p mode group ! interface epon-olt_0/5/3 p2p mode group ! interface epon-olt_0/5/4 p2p mode group onu 1 type 1GE mac a094.6a13.a39f ip-cfg static ! interface epon-onu_0/5/4:1 admin enable property description "" ems-autocfg-request disable sla-profile 1G vport 1 encrypt direction downstream disable vport 1 switchport mode hybrid vport 1 switchport default vlan 1031 vport 1 port-location format dsl-forum vport 1 port-location sub-option remote-id enable vport 1 port-location sub-option remote-id name REMOTE-ID vport 1 dhcp-option82 enable vport 1 dhcp-option82 trust true replace vport 1 ip dhcp snooping enable vport 1 ip dhcp snooping quota 1 vport 1 ! interface epon-olt_0/6/1 p2p mode group ! interface epon-olt_0/6/2 p2p mode group ! interface epon-olt_0/6/3 p2p mode group ! interface epon-olt_0/6/4 p2p mode group ! !**********After interface -- show run on RP start!********** ! ip route 0.0.0.0 0.0.0.0 10.205.31.254 ! pon ! ! mac aging-time 300 mac monitor-period 10 mac usage-threshold 70 ! ! ! pon-onu-mng epon-onu_0/3/3:1 auto-config vlan port eth_0/1 mode transparent ! ! pon-onu-mng epon-onu_0/5/1:1 auto-config compatibility enable mode CTC vlan port eth_0/1 mode tag vlan 1031 priority 0 ! ! pon-onu-mng epon-onu_0/5/1:2 auto-config vlan port eth_0/1 mode transparent ! ! pon-onu-mng epon-onu_0/5/4:1 auto-config vlan port eth_0/1 mode tag vlan 1031 priority 0 ! epon ! ! epon ! ! pon ! ! ces ! ! mpnat service telnet-shell service-port 9999 mpnat trans-table aging-time 60 mpnat onu-telnet idle-time 3 mpnat onu-ftp aging-time 5 mpnat onu-snmp aging-time 30 mpnat onu-ftp-data aging-time 5 ! bcm-server listen-port 5000 ! hostname ZXAN ! enable secret 5 ISMvKXpXpadDiUoOSoAfww== ! username zte password 0 zte privilege 15 username zte password 0 zte max-sessions 16 username admin password 0 admin username admin password 0 admin max-sessions 16 ! multi-user configure ! login-authentication-type local login-authorization-type local ! clock timezone UTC 0 banner incoming @ ************************************************ Welcome to ZXAN product C220 of ZTE Corporation ************************************************ @ ! ! auto-write disable ! user-suspend mode none ! snmp-server location No.889 BiBo Rd. PuDong District, ShangHai, China snmp-server contact +86-021-68895000 snmp-server packetSize 8192 snmp-server engine-id 80000f3e030000d0d09cdc0e snmp-server community admin1 view allview ro snmp-server view allview org included snmp-server view DefaultView system included snmp-server enable trap SNMP snmp-server enable trap VPN snmp-server enable trap BGP snmp-server enable trap OSPF snmp-server enable trap RMON snmp-server enable trap STALARM ! ! logging on logging buffer 200 logging mode fullcycle logging level notifications logging snmplog-save disable syslog facility local0 syslog severity 6 ! line console idle-timeout 30 line console absolute-timeout 1440 line telnet idle-timeout 30 line telnet absolute-timeout 1440 line telnet users 16 line cli detail-info-show disable ! ssh server authentication ispgroup 1 ssh server authentication mode local ssh server authentication type chap no ssh server only ssh server version 2 ! authentication local enable ! tacacs disable tacacs-server timeout 5 tacacs-server packet 1024 ! ! aaa authorization exec default none ! ! alarm enable alarm confirm nms-hello-trap disable alarm trap-confirm retry 1 timeout 30 ! end ZXAN(config)# video5415898922113586631.mp4 Дамп 10.5.31.1.30468 > 10.5.31.254.domain: [udp sum ok] 10313+ A? a.root-servers.net. (36) 16:33:58.932305 90:e2:ba:85:5e:51 > 30:16:9d:14:48:31, ethertype IPv4 (0x0800), length 551: (tos 0x0, ttl 64, id 27104, offset 0, flags [none], proto UDP (17), length 537) 10.5.31.254.domain > 10.5.31.1.30468: [udp sum ok] 10313 q: A? a.root-servers.net. 1/13/14 a.root-servers.net. A 198.41.0.4 ns: net. NS g.gtld-servers.net., net. NS h.gtld-servers.net., net. NS f.gtld-servers.net., net. NS k.gtld-servers.net., net. NS a.gtld-servers.net., net. NS d.gtld-servers.net., net. NS c.gtld-servers.net., net. NS i.gtld-servers.net., net. NS e.gtld-servers.net., net. NS l.gtld-servers.net., net. NS m.gtld-servers.net., net. NS j.gtld-servers.net., net. NS b.gtld-servers.net. ar: f.gtld-servers.net. A 192.35.51.30, m.gtld-servers.net. A 192.55.83.30, d.gtld-servers.net. A 192.31.80.30, k.gtld-servers.net. A 192.52.178.30, j.gtld-servers.net. A 192.48.79.30, b.gtld-servers.net. A 192.33.14.30, a.gtld-servers.net. A 192.5.6.30, g.gtld-servers.net. A 192.42.93.30, c.gtld-servers.net. A 192.26.92.30, h.gtld-servers.net. A 192.54.112.30, e.gtld-servers.net. A 192.12.94.30, i.gtld-servers.net. A 192.43.172.30, l.gtld-servers.net. A 192.41.162.30, f.gtld-servers.net. AAAA 2001:503:d414::30 (509) 16:33:58.949432 90:e2:ba:85:5e:51 > 30:16:9d:14:48:31, ethertype IPv4 (0x0800), length 1292: (tos 0x0, ttl 60, id 0, offset 0, flags [DF], proto UDP (17), length 1278) 142.251.39.46.https > 10.5.31.1.46582: [udp sum ok] UDP, length 1250 16:33:59.056821 30:16:9d:14:48:31 > 90:e2:ba:85:5e:51, ethertype IPv4 (0x0800), length 74: (tos 0x0, ttl 63, id 55735, offset 0, flags [DF], proto TCP (6), length 60) 10.5.31.1.42636 > 216.58.208.193.https: Flags [S], cksum 0xacb7 (correct), seq 3263364944, win 65535, options [mss 1460,sackOK,TS val 955786801 ecr 0,nop,wscale 9], length 0 16:33:59.075878 90:e2:ba:85:5e:51 > 30:16:9d:14:48:31, ethertype IPv4 (0x0800), length 74: (tos 0x0, ttl 123, id 0, offset 0, flags [DF], proto TCP (6), length 60) 216.58.208.193.https > 10.5.31.1.42636: Flags [S.], cksum 0x9024 (correct), seq 1553680444, ack 3263364945, win 65535, options [mss 1412,sackOK,TS val 3226858360 ecr 955771454,nop,wscale 8], length 0
