рефлектометр Рефлектометр Corning 340M OTDR Plus™ Multitester II , аналог Anritsu NETTEST CMA4000

[hex@set 1 423]

Продано



OTDR Производство Corning Cable Systems, базовая платформа Anritsu Nettest-4000i
Боевое рабочее состояние.
Цветной 10ти дюймовый дисплей.
Русский язык присутствует.
Оптический модуль 2520 CATV Mid range dual single-mode
36/34 dB, 1310/1550 nm,
Visual Fault Locator (VFL). -Есть
+20 dB power meter -есть

Профессиональная не убиваемая железяка по цене китайца.

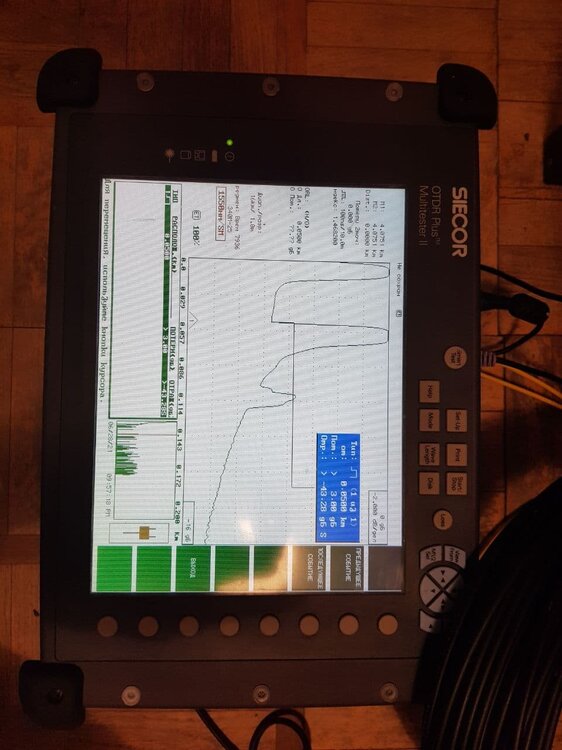

На фото измерения двух (разных) 50метровых патчей внешнего исполнения.

Specifications
Mainframe and General Specifications
Parameter Specification
Display Type 10.4-inch Active Matrix Color (TFT)
Units of Measure Meters, Feet (selectable)
Operating Temperature AC power: 0˚ to 45˚C (32˚ to 122˚F); Battery: 0˚ to 40˚C (32˚ to 104˚F)
Storage Temperature -20˚ to +60˚C (-4˚ to 140˚F)
Humidity 95% RH maximum, non-condensing
Maximum Altitude 250km
Power Supply Battery: 6 hr typical battery life-(2); recharge time: 1.5 to 2 hr;
AC: 100-250 V, 47-63 Hz; Autoranging: 12 V DC operation
Weight 11.0 lb (4.9 kg) includes battery and module
Dimensions 9.5 in x 13.5 in x 3.75 in (24.1 cm x 34.3 cm x 9.5 cm); includes mainframe, 1 module, and battery
Data Points Up to 16,000
Tone for Fiber Identification 2 kHz
Mass Storage Internal Solid-State Memory: up to 125 traces
hard drive over 80,000 traces
Visual Fault Locator
Parameter Specification
Wavelength 635 ± 10 nm
Output Power ≥-2 dBm (0 dBm max)
Transmission CW or 2 Hz (blink)
Connector (fixed) FC, SC, or ST ® Compatible
Laser Certification IEC 825 Class 2, FDA (21CFR), Class 2
Single-mode Laser Source Option
Parameter Specification
Wavelength 1310/1550 nm
Output Power ≥-10 dBm, typical
Stability (+23°C, 8hrs) ± 0.2 dB
Spectral Width (RMS) ≤10 nm, typical
Modulation Continuous, 1 kHz, and 2 kHz
Laser Certification CDRH CLASS 1 21CFR requirements (eye safety)
Power Meter Option
Parameter Specification
Calibrated Wavelengths 850/1300/1310/1550/1625* nm
Optical Meter CATV: +20 to -45 dBm, with mf-460 filter
Detector Type 2 mm Ge PIN photodiode
Wavelength 800 - 1800 nm
Resolution 0.01 dBm, 0.01% Watts
Store Reference Mode Yes
Accuracy ± 4% +5 to -50 dBm
± 8% +10 to +5 dBm and -50 to -55 dBm
Linearity ± 0.04 dB, +5 to -55 dBm

Связь личка
т066699IЧЧЧ
цена 8500гр
