WIFI 7 XGSPON ONU BE3600 FTTx Solution

[Alina1989]

Overview

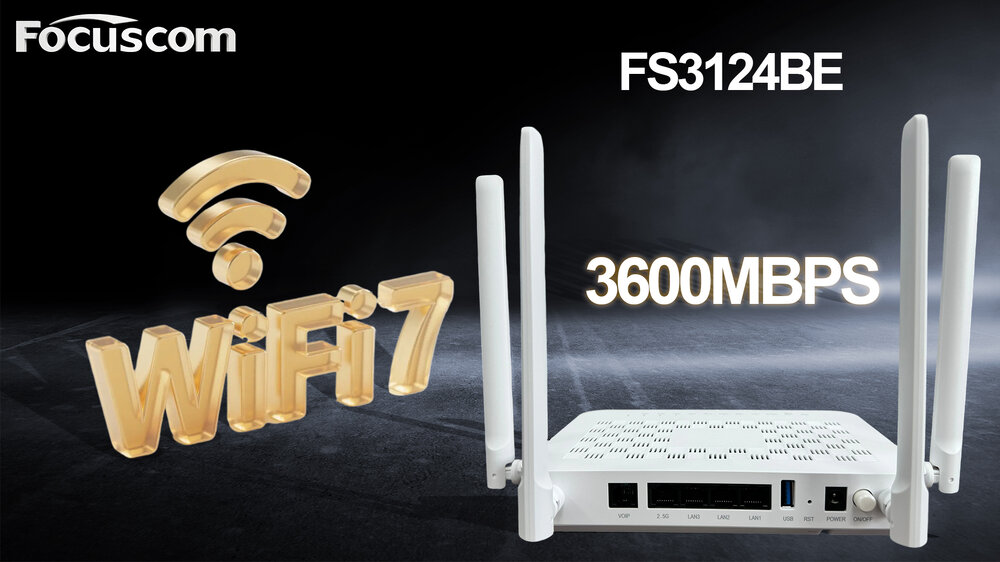

The Focuscom FS3124BE is a next-generation XGSPON optical terminal access device designed for high-end home and enterprise FTTX deployments. Integrating the latest WiFi 7 (BE3600) technology, it provides symmetrical 10Gbps upstream and downstream fiber access, delivering a robust solution for ultra-bandwidth applications.



Key Features & High-Speed Connectivity

Next-Gen XGSPON Speed: Supports symmetrical transmission rates of 10Gbps (Upstream/Downstream) using XGSPON technology.

WiFi 7 Performance: Delivers up to 3600Mbps total air speed (688Mbps on 2.4GHz and 2882Mbps on 5GHz).

Versatile Wired Ports: Equipped with one 2.5GE port for high-speed wired devices and three Gigabit Ethernet (GE) ports for standard networking.

Advanced Wireless Tech: Features $2\times2$ MIMO and Multi-Link Operation (MLO) across 2.4G and 5G bands to ensure lower latency and higher reliability.

Powerful Signal: High-gain 5dBi antennas provide excellent penetration, capable of passing through reinforced concrete or brick walls.



Comprehensive Functionality

Voice over IP (VoIP): Includes one RJ11 port supporting G.711, G.729, and G.722 standards for crystal-clear voice services and fax modes.

USB 3.0 Integration: A built-in USB 3.0 port allows for fast local file sharing and storage expansion.

Enterprise-Grade Security: Supports WPA3-SAE, WPA2-PSK, and robust firewall features to keep your network secure.

Smart Management: Easy configuration and maintenance via Web UI, OMCI, TR069, and CLI (Telnet/SSH).

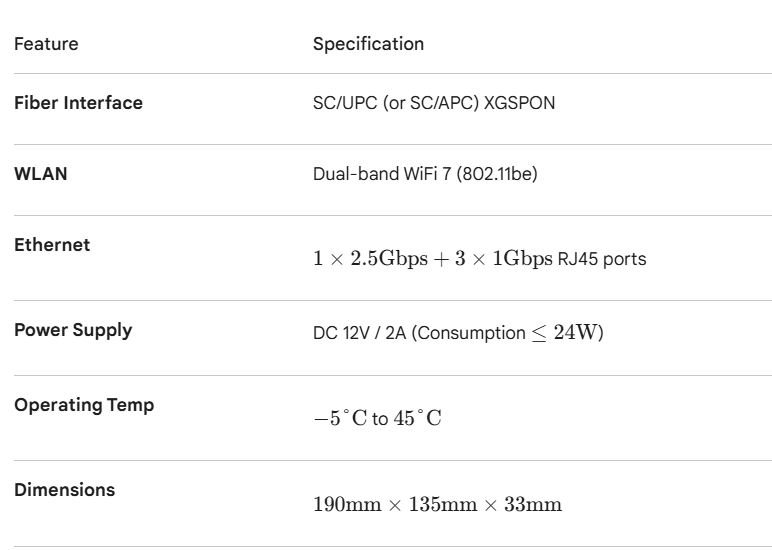

Technical Specifications
